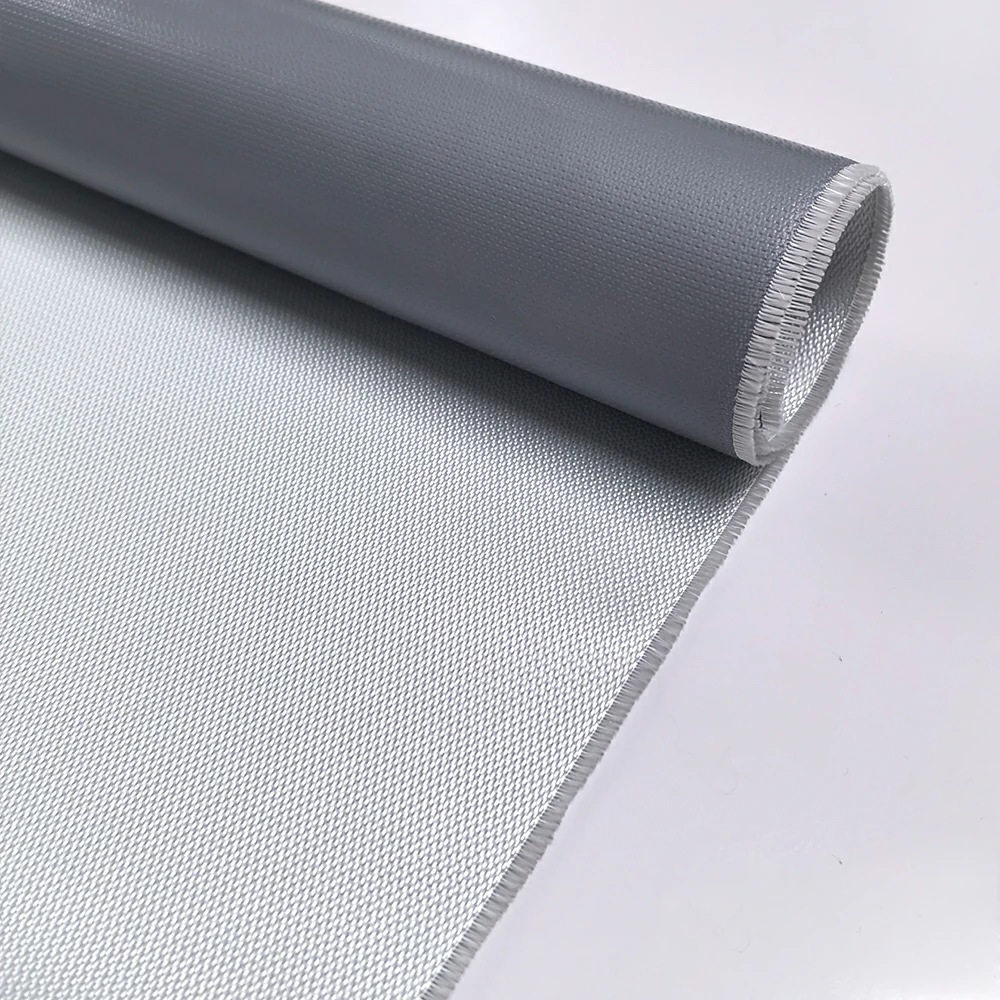

Silicone Coated (Impregnated) Fiberglass Fabric

Silicone Coated (Impregnated) Fiberglass Fabric

Name: Silicone Coated (Impregnated) Fiberglass Fabric
Brand: Heat Resistant Fabric Manufacturer | Heaterk
SKU: 00093
Availability: InStock
Rating: 5 (6 reviews)

Item No.: 00093

Heaterk offers specially formulated silicone rubber coated glass fabric, specifically designed for high temperature, smoke, and flame retardation environments, and has excellent oil and water resistance.Fabric width 60 to 150 mm,

Thickness:

0.2mm(0.008")

0.43mm(0.017")

0.45mm(0.018")

0.48mm(0.019")

0.55mm(0.022")

0.7mm(0.027")

0.8mm(0.03")

0.92mm(0.036")

1.35mm(0.053")

Custom Thickness

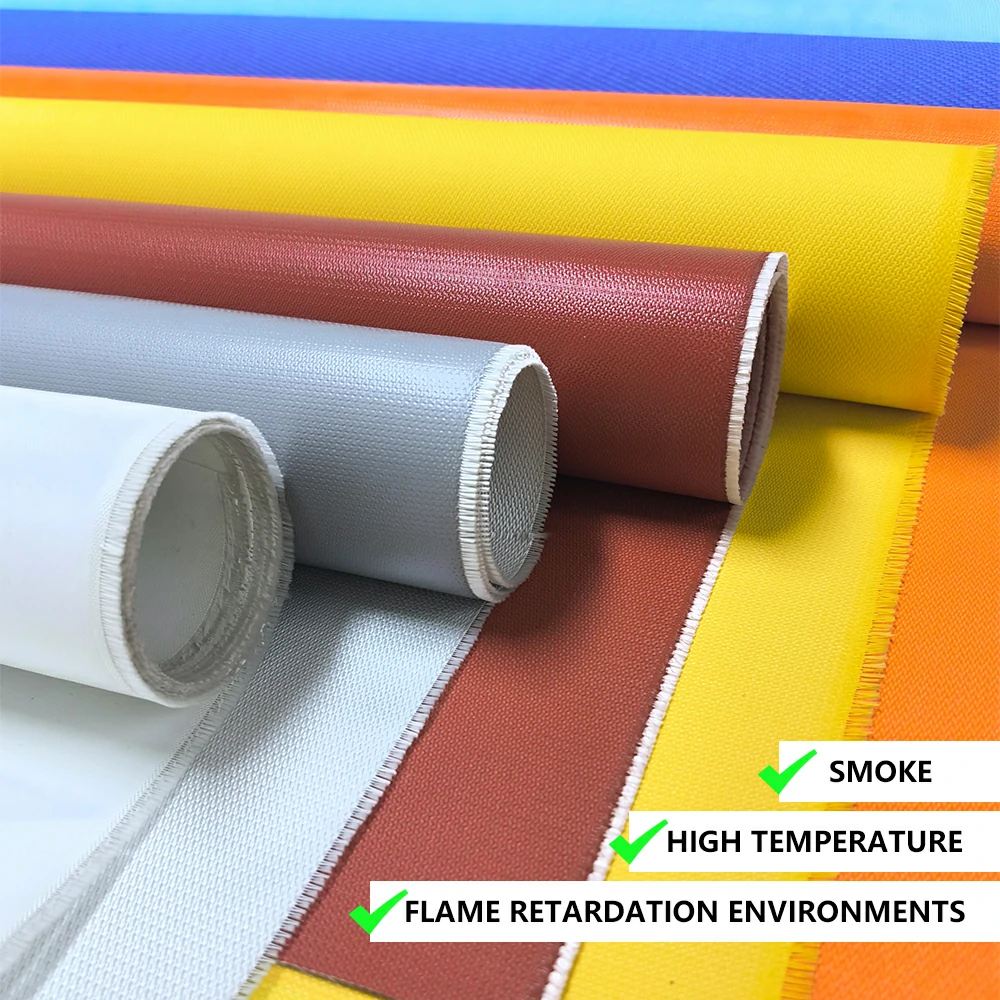

Color:

Grey

Black

Red

Yellow

Blue

Customized
Fabric Grade:

Standard Grade

Premium Grade

Professional Grade

Request Quote Contact Us PDF Format

TDS of silicone coated fiberglass fabric

Description Download Review

Description

Heaterk, a renowned insulation material manufacturer, proudly presents our state-of-the-art Silicone Coated Fiberglass Fabric, designed to meet and exceed the demands of various high-temperature insulation applications.

- Performance Parameters -

	Test Method	US	Metric
Temperature Resistance	ASTM-D-6413	Cold: -67 °F Hot: Hot Continuous 1000 hrs. +446 °F no change	Cold: -55 °C Hot: Continuous 1000 hrs. 230 °C no change
Breaking Strength	ASTM-D-5034
Warp		1500 lbs/inch	267.9 kg/cm
Fill		2025 lbs/inch	200.95 kg/cm
Tear Strength	ASTM-D-1424
Elmendorf Tear
Warp		200 lbs.	90.7 kg
Fill		150 lbs.	68.05 kg
Flame Resistance
Afterglow		1 second max.
Flameout		1 second max.

- Specification -

Model	Unit Weight		Thickness		Coating	Color	Temperature
Model	Metric (g/m²)	US(oz/sy)	Metric (mm)	US(Inches)	Coating	Color	Temperature
SGSN0E	250	5	0.2	0.008	Double Coating	Grey, Black, Red and custom	230℃/446℉
SGSA3E	560	11.2	0.43	0.0172	Double Coating
SGSA5E	580	11.6	0.45	0.018	Double Coating
SGDA8E	650	13	0.48	0.0192	Single Coating
SGSS5E	670	13.4	0.55	0.022	Double Coating
SGDS5E	790	15.8	0.7	0.028	Single Coating
SGSB0E	1150	23	0.8	0.032	Double Coating
SGSP2E	1400	28	0.92	0.0368	Double Coating
SGSX35E	1550	31	1.35	0.054	Double Coating

silicone fiberglass fabrics Certification

Fire Resistance	UL 94 V0
Convective Heat	EN ISO 9151 \| B1
Radiant Heat	EN ISO 6942 \| C1
Traction Resistance	ASTM-D-1424 \| Warp 1500 lbs/inch Fill 2025 lbs/inch
Flame Propagation	ISO 15025 \| A1 - A2
Melted Metal Splashes	EN ISO 9150 \| CLASS 2 EN ISO 9185 \| E3/D3
Water Penetration Resistance	EN 20811 \| 100
Resistance Welding And Cutting Projections	11611 \| CLASS 2
Abrasion Resistance	ISO 12947-2 \| 20-000 Cycles

- Silicone Coated Fiberglass Fabric -

Silicone Fabric Production Process

Product Overview and Key Features

Our silicone coated glass fabric is a silicone impregnated fiberglass fabric, developed through an advanced process where impregnated fiberglass is coated with high-quality silicone rubber. The result is a silicone impregnated fiberglass fabric that boasts exceptional heat resistance, flame retardant properties, and versatile applications.

Unit Weight, Thickness, and Versatility:

Available in various unit weights ranging from 250 grams per square meter (gsm) to 1550 gsm, our silicone coated glass fabric offers a diverse selection of thicknesses to cater to your specific insulation needs. This versatility makes it suitable for an array of applications, such as removable insulation, heat-resistant barriers, and flame-retardant protection.

Customizable Colors and Silicone Coating:

Heaterk's silicone coated fiberglass cloth can be tailored to your preferred color, ensuring a visually appealing insulation solution that complements your brand identity or project requirements. The silicone coating not only adds aesthetic value but also enhances the fabric's durability and resistance to wear and tear.

- Fabric Features -

silicone fabric fire test

Flame Retardant: Our silicone fiberglass fabric is inherently flame retardant, providing an extra layer of safety for high-risk applications.
Silicone Rubber: The silicone impregnated fabric utilizes high-quality silicone rubber, ensuring optimal performance and longevity.
High Temperature: The fabric's high-temperature resistance makes it an excellent choice for industries where heat management is critical.
Coat Fabrics: The silicone coating on our fiberglass cloths ensures a strong bond, resulting in a robust and long-lasting insulation solution.
Fiberglass Fabrics: Our coated fiberglass fabric is made from premium fiberglass fabrics, guaranteeing superior insulation properties.

- Versatile Applications and Benefits -

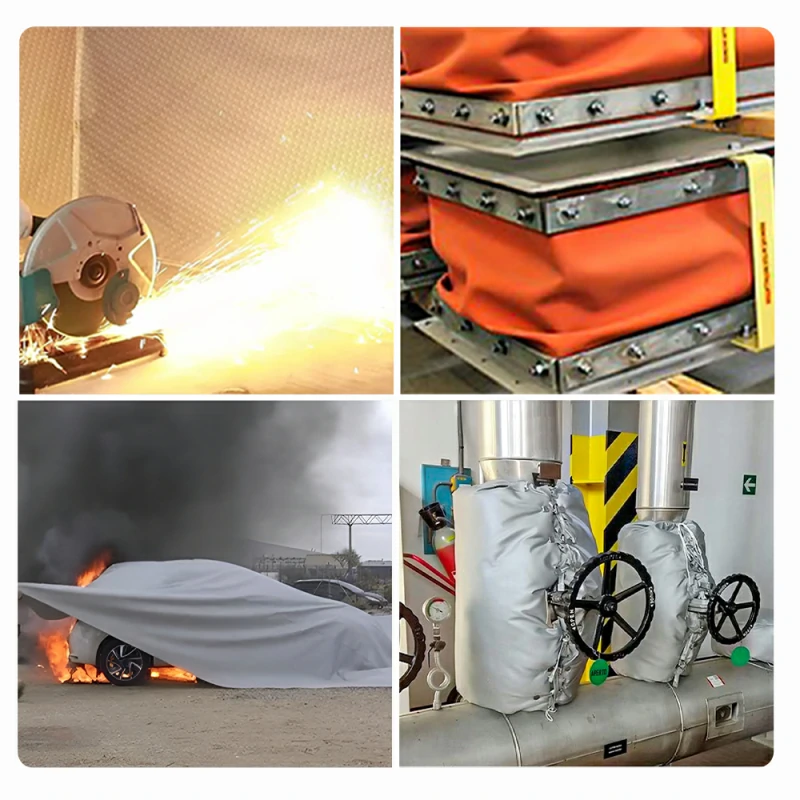

silicone coated fabric application

Heaterk's silicone coated fiberglass tape and silicone fiberglass fabric have a wide range of applications, including but not limited to:

Industrial Equipment Insulation:

Our silicone impregnated fabric is ideal for insulating industrial equipment, such as pipes, ducts, and machinery, due to its heat resistant and flame retardant properties.

Automotive and Aerospace Insulation:

The high temperature resistance and lightweight nature of our silicone glass fabric make it perfect for automotive and aerospace insulation applications.

Electrical Insulation:

Silicone coated fiberglass fabrics provide excellent electrical insulation, making them suitable for use in electrical components and wiring systems.

Residential and Commercial Building Insulation:

With its flame retardant and high-temperature resistant properties, our coated fiberglass cloth is a top choice for residential and commercial building insulation.

Removable Insulation:

Heaterk's silicone coated fiberglass tape and fabric can be used for removable insulation solutions, allowing for easy installation and removal in various applications.
