What Is Carbon Fiber Fabric?

Carbon fiber fabric is a high performance reinforcement material widely used in advanced composite materials across sectors such as aerospace, automotive, wind energy, and defense. With global carbon fiber production exceeding 130,000 metric tons annually and a projected growth rate of over 11% per year, carbon fiber materials have become essential in applications demanding high strength, low weight, and excellent fatigue resistance.

Produced primarily from polyacrylonitrile (PAN) or pitch-based precursors, carbon fiber filaments undergo stabilization and carbonization processes to form lightweight, yet extremely strong strands of carbon. These filaments are then woven into fabric structures using specific patterns such as twill weaves or plain weave, with variable tow sizes to meet different mechanical requirements. The resulting fabric offers outstanding tensile strength, rigidity, and resistance to thermal expansion, making it ideal for structural carbon fiber composite applications.

Carbon fiber reinforced fabrics may be unidirectional or woven, and are supplied either dry or as pre-impregnated forms depending on the processing method. Their adaptability, combined with a superior strength to weight ratio and chemical stability, positions fiber fabrics as foundational materials in the design of next-generation products across industries.

Types and Classification of Carbon Fiber Fabric

In composite engineering, selecting the right type of carbon fiber fabric is critical to achieving the desired structural performance, weight efficiency, and manufacturability. Two of the most important classification factors are carbon fiber filaments per tow and weave architecture. The tow size refers to how many individual filaments of carbon are bundled into each strand of carbon—ranging from 1K to 50K and beyond. Smaller tows such as 3K are often used in high-precision applications where surface quality and drapability are essential. Larger tows like 24K or 48K deliver cost-effective reinforcement for thick laminates and industrial-scale parts.

Depending on the required tensile strength, forming behavior, and cosmetic finish, different fabric architectures are used. These include woven types such as plain weave, twill weaves, and satin weaves, as well as unidirectional and non-woven formats designed for specialized composite materials applications.Plain weave offers uniform strength distribution and high stability, while twill weaves provide improved flexibility and drape without significantly compromising strength. Learn more in our comparison: Twill Weave vs Plain Weave.

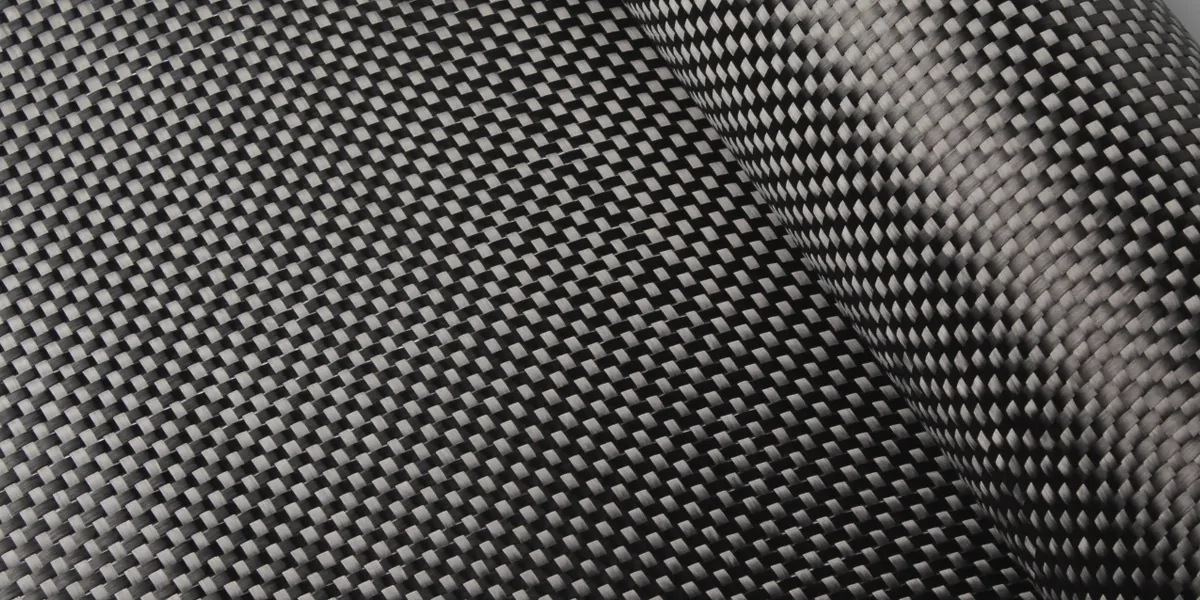

Plain Weave

Plain weave is one of the most commonly used structures in carbon fiber materials. Each weft thread crosses over and under each warp thread in a tightly interlaced pattern, offering excellent dimensional stability and balanced tensile strength. Its consistent structure is ideal for flat or moderately curved laminates, though the tight interlacing introduces crimp, which can reduce fiber efficiency compared to looser weaves.

Twill Weave

Twill weaves are widely favored for applications requiring better drape and contouring. With a diagonal interlacing pattern that allows fibers to float over two or more yarns, twill weaves provide greater flexibility while maintaining high mechanical performance. They are especially useful in aerodynamic surfaces, automotive exteriors, and applications where fiber placement must follow complex geometries.

Satin Weave

Satin weaves, such as 4-harness or 5-harness satin, minimize the number of interlacings to produce a smoother surface finish with less fiber crimp. This type of weave improves load-bearing continuity and resin flow, making it suitable for structural panels where a premium surface appearance is required. However, satin weaves may be less dimensionally stable during handling and require more precise lay-up techniques.

Unidirectional Fabric

Unidirectional carbon fiber reinforced fabric consists of parallel filaments of carbon aligned in a single direction and held together by binder or light stitching. It delivers maximum tensile strength and flexural efficiency along one axis, making it the preferred choice for aerospace spars, sporting goods, and other performance-driven components that experience predictable loading. When used in multilayer layups, unidirectional plies can be stacked at varying angles to build multidirectional performance.

Non-Woven Carbon Fiber

Non-woven fiber fabrics are composed of chopped or continuous carbon fiber filaments arranged randomly or in multidirectional patterns. Unlike woven structures, these mats are bonded using binders or needle punching and offer isotropic reinforcement, making them ideal for parts requiring uniform strength and complex shape conformity. Non-woven fabrics are often used as surfacing veils, bulk fillers, or corrosion-resistant layers in high-temperature carbon fiber composite systems. While not as strong in any single direction, they provide superior formability and resin wet-out across irregular mold surfaces.

How to Fabricate Carbon Fiber Composites

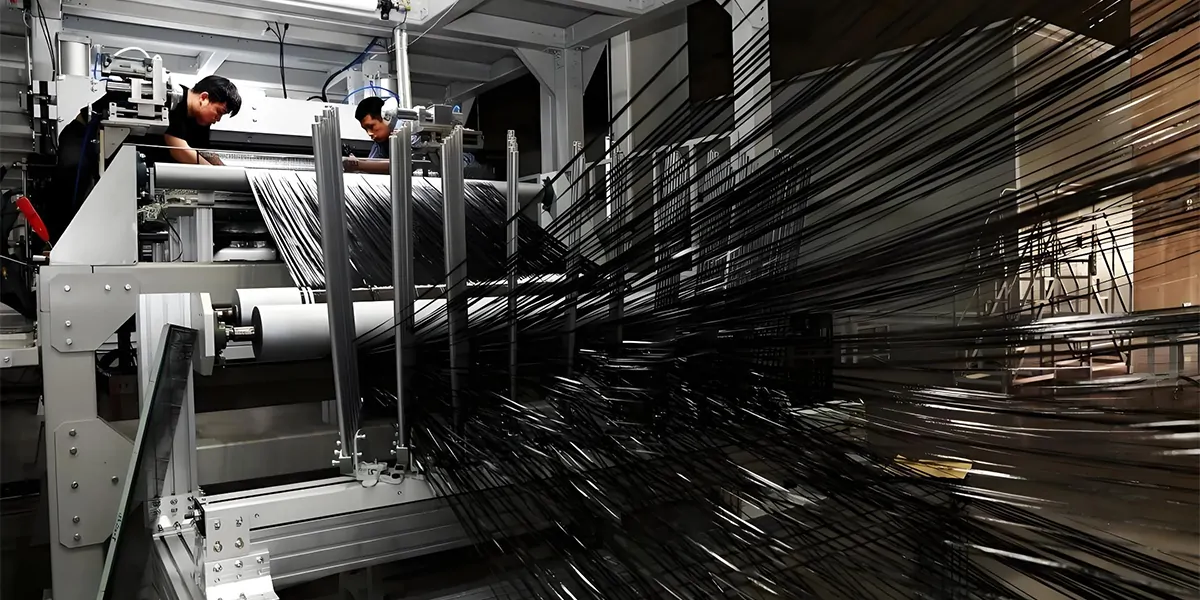

Fabricating carbon fiber reinforced composites involves a tightly controlled, multi-stage process that transforms raw fiber fabrics into high performance structural components. While the carbon fiber production process includes stabilization, carbonization, and surface treatment of precursors like PAN or pitch, composite fabrication focuses on converting those fabrics into finished parts using resin systems and heat-curing techniques.

The process begins with selecting the appropriate types of carbon fiber based on the required strength to weight ratio, mechanical loading, and mold geometry. Fabrics such as plain weave, twill weaves, or unidirectional formats are laid into a mold with precise fiber orientation to match anticipated load paths. Lay-up may be performed manually or with automated fiber placement, depending on production scale and part complexity.

Next, the reinforcement is impregnated with a resin—typically epoxy, vinyl ester, or thermoplastic—using methods like vacuum-assisted resin transfer molding (VARTM), infusion, or prepreg lay-up. Prepreg materials already contain a fixed resin content and allow for greater consistency. During consolidation, vacuum bagging or autoclave systems apply uniform pressure (often up to 7 bar) and heat to the laminate. Cure cycles typically range between 120°C and 180°C, depending on the resin chemistry.

Proper curing ensures a dense, void-free carbon fiber composite with excellent tensile strength, dimensional accuracy, and resistance to thermal expansion. Most aerospace-grade laminates aim for a fiber volume content of 55% to 65% to optimize mechanical performance without compromising resin flow.

Following the curing phase, post-processing operations include trimming, drilling, and machining to final dimensions. In high-specification sectors such as aerospace or medical, non-destructive testing (NDT) methods like ultrasonic scanning or X-ray inspection are used to validate structural integrity.

The result is a precision-engineered composite component that offers exceptional stiffness, fatigue resistance, and stability under high temperature conditions—capable of outperforming metals in weight-critical applications.

What Is Carbon Fiber Fabric Used For?

Carbon fiber fabric is used across industries that demand lightweight, high-strength, and fatigue-resistant materials. With tensile strengths up to 700 ksi, density around 1.75 g/cm³, and near-zero thermal expansion, it offers a superior alternative to metals and fiberglass in structural applications.

In aerospace, 3K or 6K twill weave and unidirectional prepregs (150–300 gsm) are used for fuselage skins and wing spars, balancing drapability with directional stiffness. In automotive, 12K plain weave and 24K woven fabrics (300–600 gsm) are selected for body panels and battery enclosures, offering cost-effective reinforcement with faster lay-up rates.

Wind turbine blades incorporate UD carbon fabrics (modulus >290 GPa) in spar caps to increase span without adding weight. Marine and defense sectors apply 5-harness satin and non-woven mats (200–500 gsm) for improved bonding, impact resistance, and corrosion protection.

Sporting goods use 3K twill or satin (~200 gsm) for bicycles and rackets, balancing strength with surface aesthetics. In medical, radiolucent 3K prepregs are used in prosthetics and imaging tables for biocompatibility and dimensional precision.

Fabric selection—tow size, weave, areal weight, and modulus—is guided by performance needs, part complexity, and process compatibility. This application-driven flexibility is what makes carbon fiber fabric a cornerstone of modern composite engineering.

Carbon fiber fabric is essential in modern engineering, offering unmatched strength-to-weight performance and design flexibility across aerospace, automotive, energy, and medical industries. The right combination of tow size, weave, and fabric weight ensures optimal results in both structure and process.
